When businesses in the Bay Area outgrow a single window unit or portable air conditioner, the next logical step often involves either an expensive central HVAC overhaul or a smarter solution: commercial multi-zone mini split systems. These ductless systems have become the go-to choice for offices, retail stores, and restaurants looking to control comfort zone by zone without tearing apart walls or ceilings.
Whether you're managing a 3,000 sq ft open office in San Jose, a boutique retail shop in San Francisco's Hayes Valley, or a busy restaurant in Oakland's Temescal district, a properly sized multi-zone mini split can dramatically cut energy costs while keeping every corner of your space comfortable. Here's everything you need to know before you invest.
What Is a Commercial Multi-Zone Mini Split System?
A multi-zone mini split system pairs one outdoor condenser unit with two or more indoor air handlers, each installed in a separate room or area. Unlike central air, each zone has its own thermostat control, meaning the server room can run at 65°F while the reception area stays at a comfortable 72°F, all from the same outdoor unit.
Commercial-grade systems extend this further. While residential multi-zone units typically support two to five zones, commercial condensers can handle 8, 12, or even 16 indoor units from a single outdoor platform. Brands like Gree, Mitsubishi Electric, and Daikin offer VRF (Variable Refrigerant Flow) systems that scale to serve entire floors of a commercial building.
Key Components of a Commercial Multi-Zone System
- Outdoor condenser: Handles all refrigerant compression; one unit serves multiple zones
- Indoor air handlers: Mounted on walls, ceilings, or in ducted cassette form for each zone
- Refrigerant line sets: Copper tubing connecting outdoor to indoor units (runs through walls or ceilings)
- Control system: Individual remotes, centralized building management, or smart Wi-Fi controllers
Key fact: According to the U.S. Department of Energy, ductless mini split systems can be up to 30% more efficient than traditional ducted HVAC systems, largely because they eliminate the 20-30% energy losses associated with duct leakage in commercial buildings.
Commercial Applications: What Works Best Where
Not all commercial spaces have the same HVAC demands. The right configuration depends on your square footage, occupancy, heat load, and operational hours. Here's how multi-zone mini splits perform across the most common Bay Area business types.

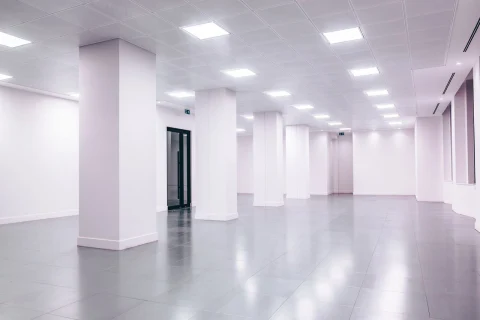

Office Spaces
Open-plan offices present a classic zoning challenge: the sunny southwest corner overheats in the afternoon while the interior core stays cool. A multi-zone system with 4-6 wall-mount or ceiling cassette units solves this elegantly. You can configure each zone with independent scheduling, turning off zones in unused conference rooms or after-hours sections automatically.
For Bay Area tech offices with significant server rooms or networking closets, dedicated cooling zones are essential. A 9,000-12,000 BTU wall unit dedicated to the server room with a separate zone for the open floor plan prevents thermal runaway in your equipment without freezing your employees.

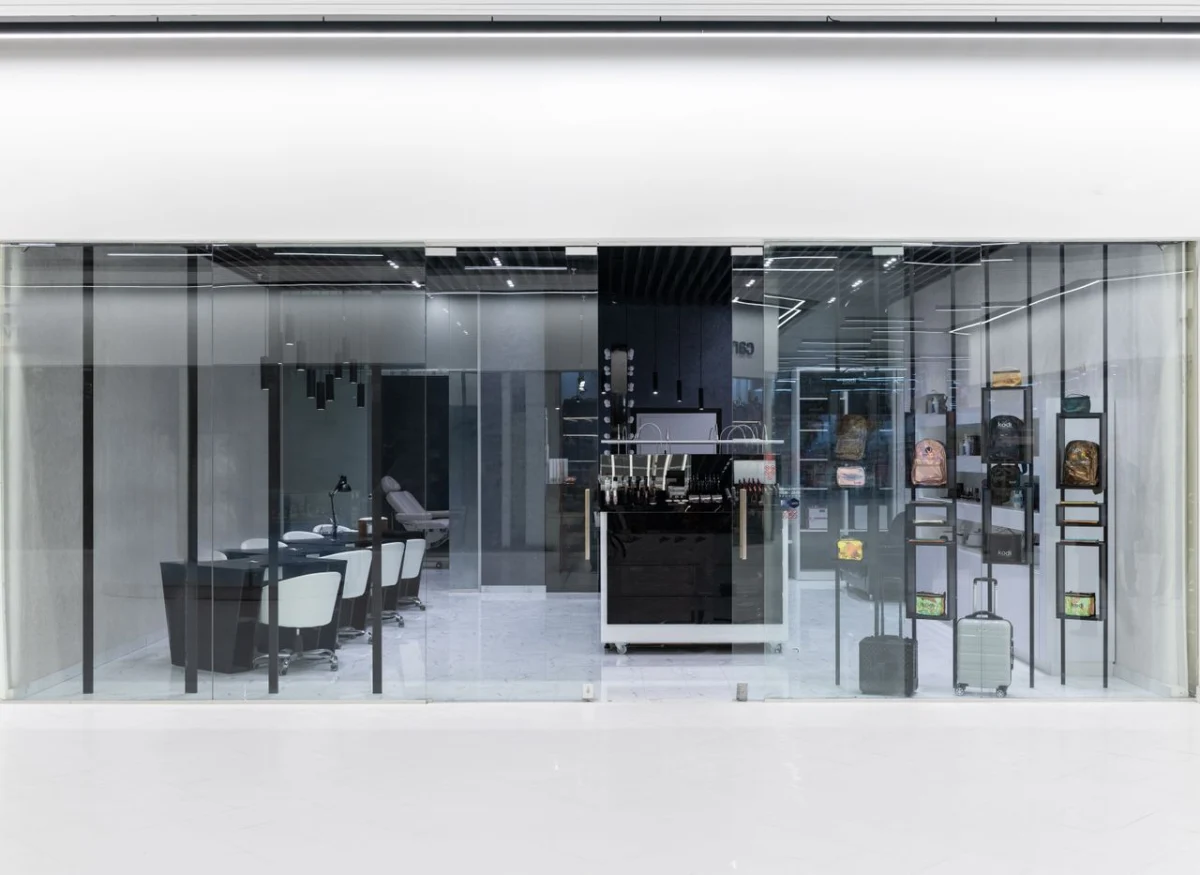

Retail Stores
Retail stores along Santana Row in San Jose or in downtown Berkeley face unique challenges: high glass storefronts that let in solar heat, frequent door openings, and highly variable occupancy. Multi-zone mini splits handle this with inverter-driven compressors that ramp up capacity quickly when a rush of customers enters rather than cycling on and off inefficiently like conventional systems.
A typical 2,000 sq ft retail space in a temperate Bay Area climate needs approximately 24,000-36,000 BTU of total cooling capacity, depending on ceiling height, glass area, and occupancy. This translates to a dual-zone or tri-zone system with two 12,000 BTU units or three 9,000 BTU ceiling cassettes.
Restaurants and Food Service
Restaurants are among the most demanding HVAC environments because kitchen heat load is massive and dining comfort is critical to customer experience. Commercial kitchen exhaust and makeup air systems are typically handled separately (by code), but the dining room, bar area, private event space, and manager's office each benefit from independent mini split zones.
A 60-seat restaurant dining room in Oakland typically requires 36,000-48,000 BTU of cooling capacity. With a multi-zone system, the bar area can be cooled more aggressively (bartenders work hot) while the intimate dining section maintains a warmer, more comfortable temperature.
Pro tip: In California, Title 24 energy code requires commercial HVAC systems to meet minimum efficiency thresholds. Multi-zone mini splits with SEER2 ratings of 18 or higher will satisfy Title 24 requirements and may qualify for PG&E or SMUD commercial rebates.
Sizing a Commercial Multi-Zone System
Proper sizing is the most critical step. Undersizing leads to systems that run constantly without achieving setpoint; oversizing causes short-cycling, poor dehumidification, and accelerated wear.
Commercial Load Calculation Basics
A proper commercial load calculation (Manual N or equivalent) accounts for:
- Envelope load: Wall insulation R-values, glazing area, roof construction, orientation
- Internal gains: Occupancy (250 BTU/person sensible + 250 BTU latent), lighting (3.4 BTU per watt), equipment (computers, appliances)
- Ventilation load: Fresh air requirements per ASHRAE 62.1
- Process load: Restaurant kitchen spillover, server room heat, refrigeration cases
As a rough guide, Bay Area commercial spaces (Climate Zone 3) need approximately 400-600 sq ft of cooling per ton (12,000 BTU) in typical office or retail applications. High-occupancy or high-internal-gain spaces like restaurants or gyms may require 200-300 sq ft per ton.
Multi-Zone Capacity Matching
When configuring a multi-zone system, the sum of indoor unit capacities should not exceed the outdoor condenser's rated capacity by more than 30% in most configurations. For example, a 36,000 BTU outdoor unit can support up to 46,800 BTU of indoor units: manufacturers allow this over-configuration because all zones rarely run at full capacity simultaneously.
Installation Considerations for Commercial Spaces
Commercial mini split installation is more complex than residential work and requires licensed HVAC contractors with C-20 licenses in California. Key considerations include:
Permits and Building Code
In San Francisco, Oakland, San Jose, and most Bay Area municipalities, commercial HVAC work requires mechanical permits. Expect permit fees of $300-$1,200 depending on the city and system size. Your contractor should pull permits and schedule inspections. If they suggest skipping permits, walk away.
Structural Mounting
Outdoor condensers for commercial multi-zone systems are significantly heavier than residential units. A 5-ton commercial condenser weighs 250-400 lbs and requires a properly engineered rooftop mount, concrete pad, or seismic-rated wall bracket. In the Bay Area's seismic Zone 3, all rooftop equipment must be anchored to resist lateral forces per CBC Section 1613.
Line Set Length and Capacity Loss
Each additional foot of refrigerant line set beyond the base length (typically 25-50 ft) reduces system efficiency slightly. Most manufacturers allow maximum line set lengths of 100-165 feet per zone, but runs beyond 50 feet require refrigerant charge adjustments. Plan your line set routes carefully during the design phase to minimize runs.
Cost Analysis: Commercial Multi-Zone Mini Splits
Commercial multi-zone mini split installations represent a significant capital investment, but the payback period is often shorter than expected.
Equipment and Installation Costs
- 3-zone system (27,000 BTU total): $8,000-$15,000 installed
- 5-zone system (45,000 BTU total): $14,000-$24,000 installed
- 8-zone system (72,000 BTU total): $22,000-$38,000 installed
- VRF system (10+ zones, 10+ tons): $40,000-$100,000+ installed
Bay Area labor rates run 25-40% above national averages for licensed HVAC work. Budget accordingly.
Operating Cost Savings
Compared to aging central air or packaged rooftop units, a modern multi-zone mini split typically reduces HVAC energy consumption by 25-45%. For a business paying $800/month in PG&E bills with 60% attributed to HVAC, that's savings of $1,400-$2,500 per year. Payback depends on system cost and any PG&E commercial rebates you qualify for.
Key fact: PG&E's Business Energy Incentives program offers rebates for commercial HVAC equipment meeting CEE Tier 2 efficiency standards. Contact a participating contractor to confirm current incentive amounts before purchasing.
Top Brands for Commercial Multi-Zone Systems
Not all mini split brands offer commercial-grade multi-zone capability. For Bay Area commercial applications, these brands are the most specified:
- Gree: Strong commercial lineup with FLEXX series; competitive pricing; 10-year compressor warranty
- Mitsubishi Electric: Industry standard for commercial multi-zone; M-Series and City Multi VRF lines; exceptional reliability record
- Daikin: VRV (VRF) technology pioneer; excellent commercial controls integration; SkyAir line for mid-size commercial
- LG: Multi V series VRF; strong commercial controls ecosystem; competitive efficiency ratings
- AURUS: Emerging value option for small commercial multi-zone (2-5 zones); solid efficiency; available through Pacific Breeze HVAC
Is a Commercial Multi-Zone Mini Split Right for Your Business?
Multi-zone mini splits are an excellent choice for Bay Area businesses that need flexible, zone-specific climate control without the disruption and cost of ducted HVAC infrastructure. They're particularly well-suited to office suites in older buildings (1960s-1990s construction without modern ductwork), ground-floor retail in mixed-use buildings, boutique restaurants, and tech startup spaces where server room isolation is needed.
They're less ideal for very large buildings (50,000+ sq ft) where VRF systems or central plant solutions are more economical, or for spaces with high fresh air requirements (commercial kitchens, labs) where dedicated makeup air units are required by code regardless of the cooling system chosen.
If your Bay Area business is evaluating commercial HVAC options, start with a proper load calculation from a licensed mechanical engineer or HVAC contractor. The investment in correct sizing pays dividends in equipment longevity, comfort, and energy savings for the 15-20 year life of the system. Multi-zone mini splits, when properly designed and installed, consistently outperform older HVAC technologies on all three fronts.
